PRODUCTS CENTER

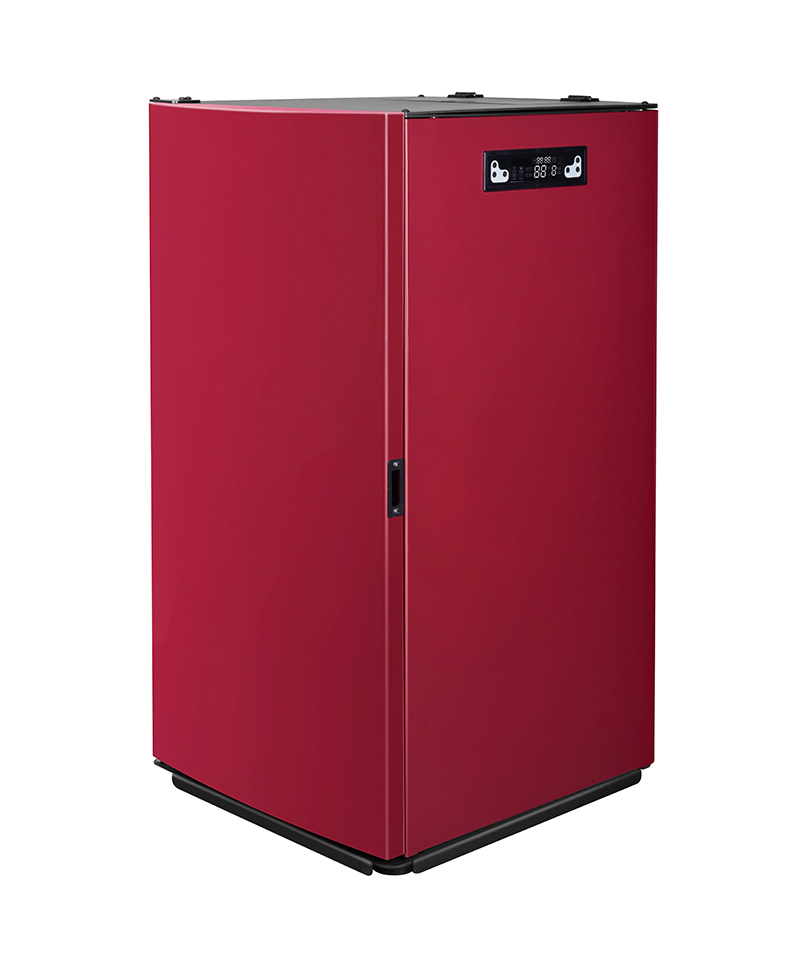

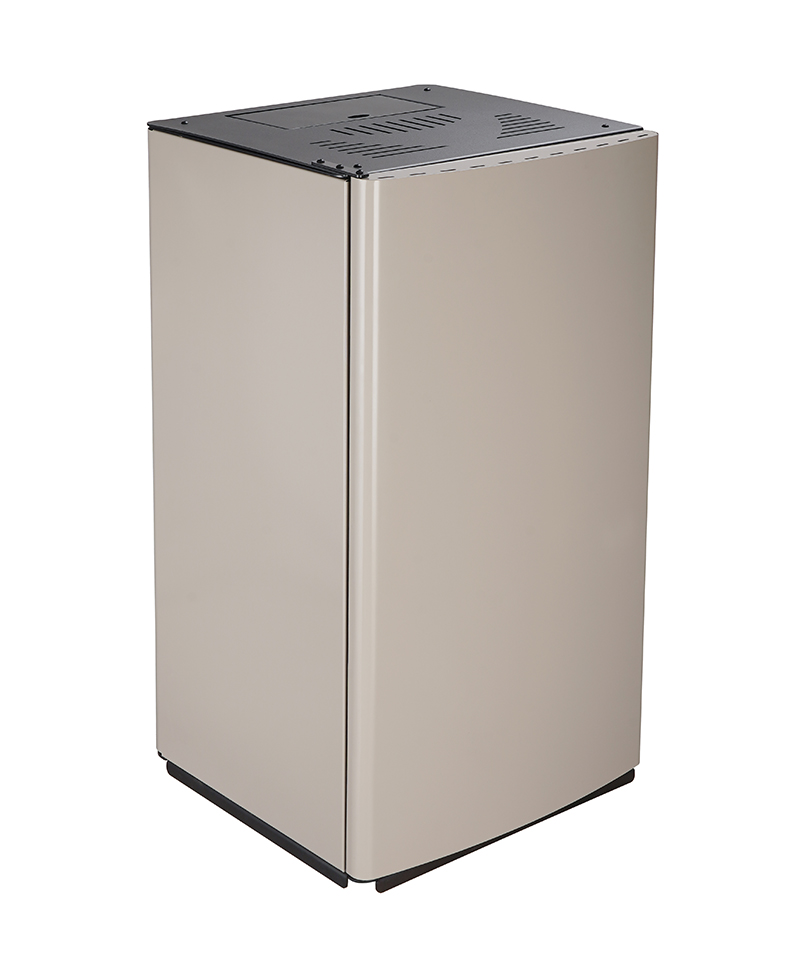

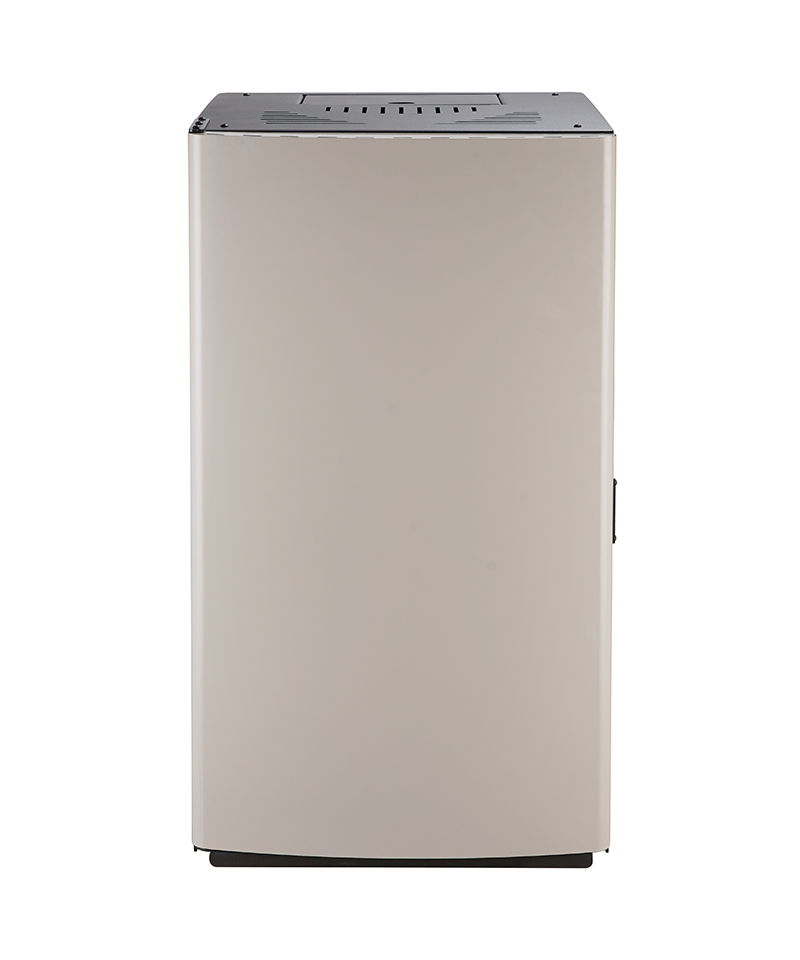

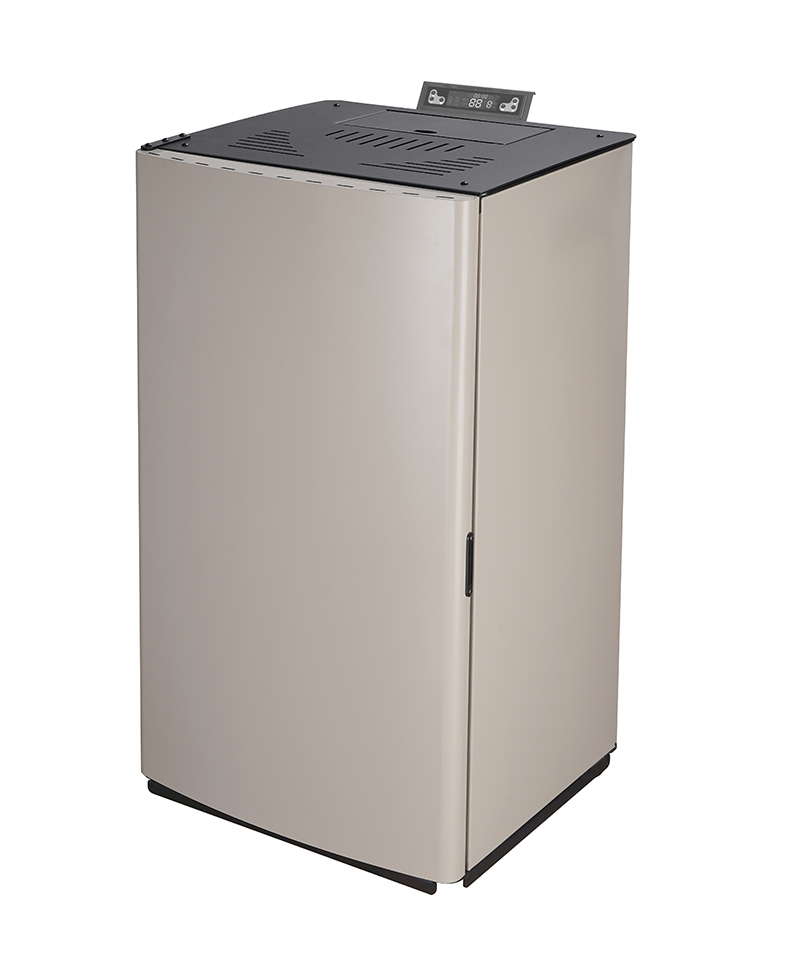

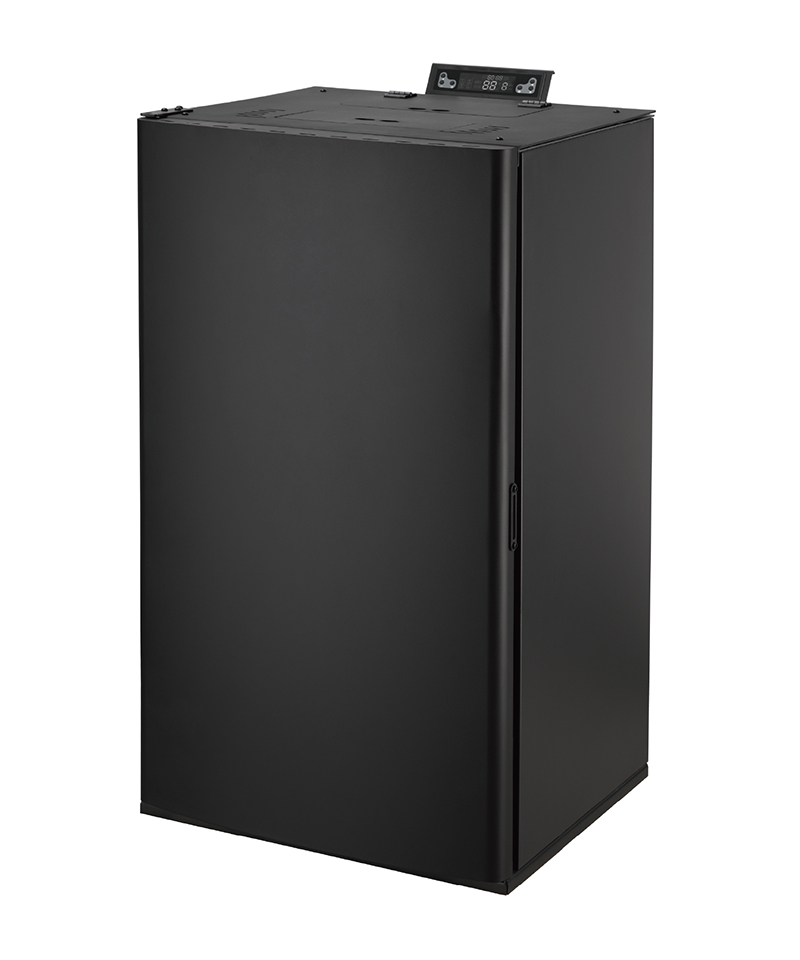

CR-24

Hydro stove

  • 6.2-20KW
  • 160-200 ㎡
  • 220-240V/50Hz
  • 35kg
Output power6.2-20 kW
Rating Voltage and Frequency220-240V/50Hz
Hopper Capacity35 Kg
Pellet hourly consumption (Max)4.8 Kg/h
Pellet hourly consumption (Min)1.5 Kg/h
Automatic Burning Time(Max)≈23 h
Automatic Burning Time (Min)≈6.5 h
Heat volume160-200 m2
Efficiency at Max≥ 91.6%
Electronic Consumption295-450W
Fluid contents of the exchange35L
Maximum working pressure3 bar
Boiler flow outlet/inlet1 " or 3/4"
Pump head11 m
Air inlet pipe / smoke outlet pipe50/80mm
Net Weight133 Kg
Dimension(W*H*D)560*1085*595 mm
Package Size(W*H*D)620*1210*650 mm

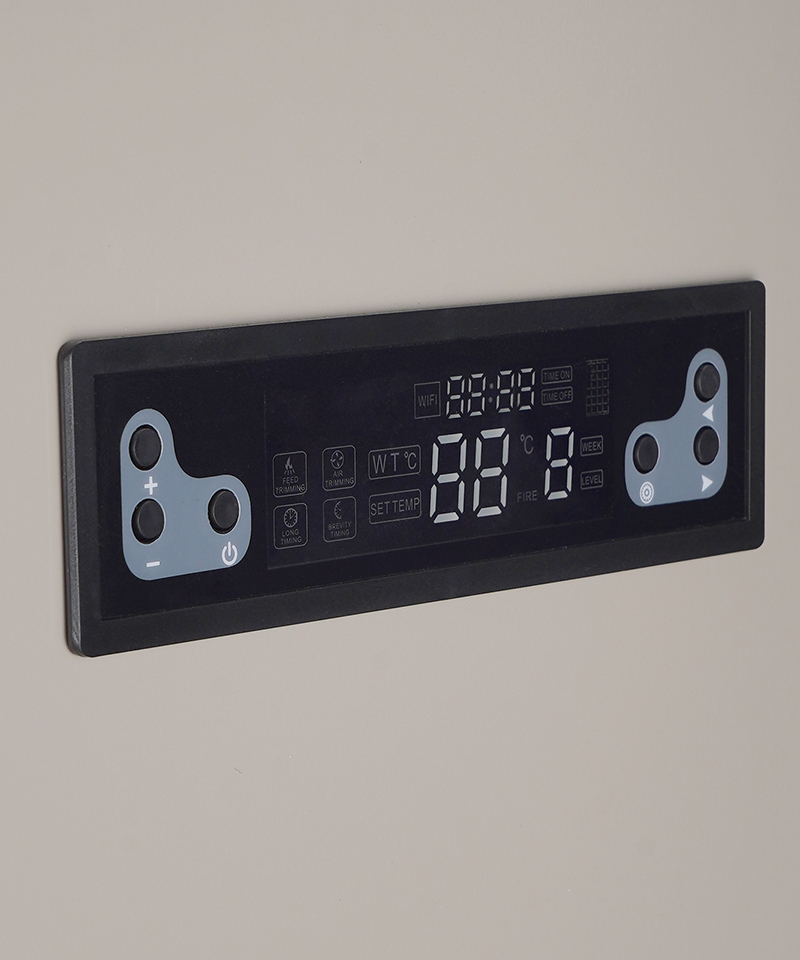

Remote control and Wi-Fi FunctionYes
(By 40’HQ container)Loading QTY around 114 PCS


Description

CR-11

Pellet requirements
  • Granules: Allow up to 1% of crumbs to pass through 1/8" mesh

  • Density: ≥1100kg/m³

  • Size: Diameter 6-8mm

  • Length: 12mm-35mm

  • Ash: not more than 1%

  • Moisture content: not more than 1%

  • Calorific value: 6kw-9kw/kg

  • Burn rate: 90%-95%

Detailed

Installation matters:

1. The fireplace can be installed in the most active room to achieve the greatest thermal efficiency. If the indoor floor height is high, the use of fans can slowly spread the heat to the active area.

2. In order to match the fully automatic operation of the fireplace, install the electrical socket and wire connection box next to the installation location before completing the final installation.

3. If it is a duplex house, if the fireplace can be placed on the stair turning platform, the heat can be directly transmitted to the upper room or the lower room, so as to achieve the purpose of energy saving.

4. The floor where the fireplace is placed also needs to be insulated. Its requirements vary from product to product. Open wood burning fireplaces require a very wide base to hold sparks and ash. Setting up a glass oven door also considers the issue of adjusting the flame.

5. Choose a suitable base, you can ask your dealer to assist, using ceramic, marble and masonry products are all good choices. Different styles of stovetops are available in a range of colors and materials to suit your needs. Alcohol fireplace.

6. All fireplace design and construction require professional knowledge to ensure safe and efficient use.
