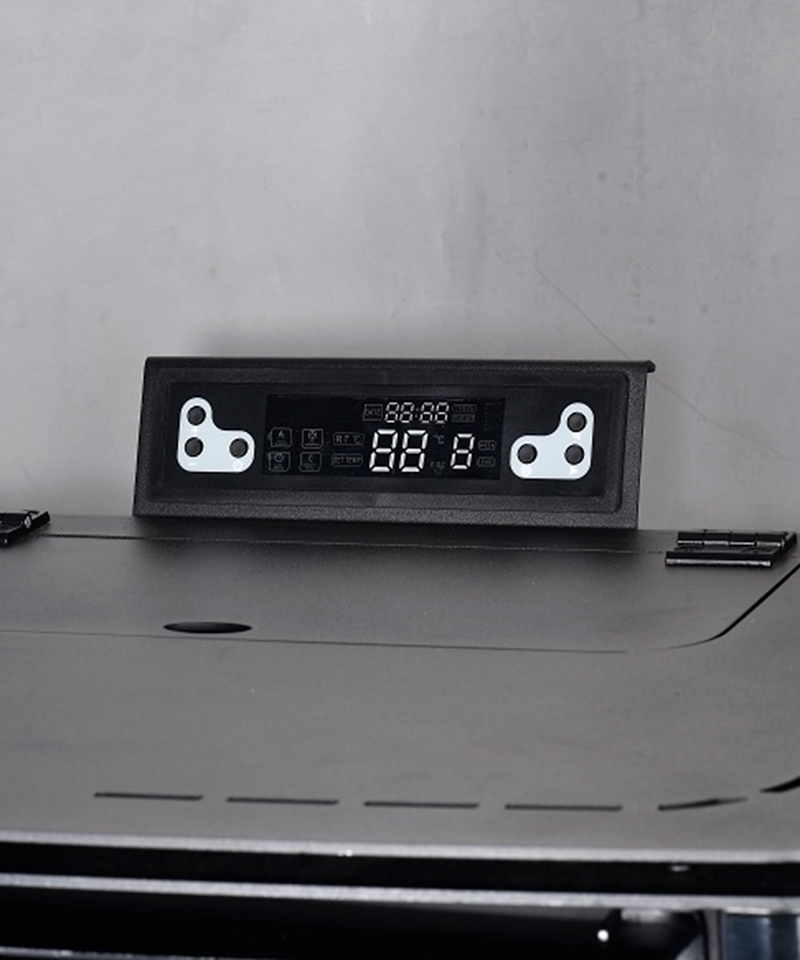

The advantages of our stove: Two kinds (LED and LCD)of Display to choose, low noise, easy repair, warranty 2 years. And have got EN14785 since 2013. We will sincerely create and share success with all clients.

CR-04

Hot air

  • 13.1KW
  • 80-100㎡
  • 220-240V/50Hz
  • 17kg

Energy efficiency classA+
Nominal output power13.1 KW
Minimum output power4 KW
Rating Voltage and Frequency220-240V/50Hz  110-120V/60Hz
Hopper Capacity17 Kg
Pellet hourly consumption(Max)2.6 Kg/h
Pellet hourly consumption(Min)0.6 Kg/h
Automatic Burning Time(Max)≈28 h
Automatic Burning Time(Min)≈6.5 h
Heat volume80-100 m2
Efficiency at Max≥90.2%
Electronic Consumption47-380W
Standard air inlet / flue outlet  Ø50/80mm
N.W/G.W101 / 110Kg

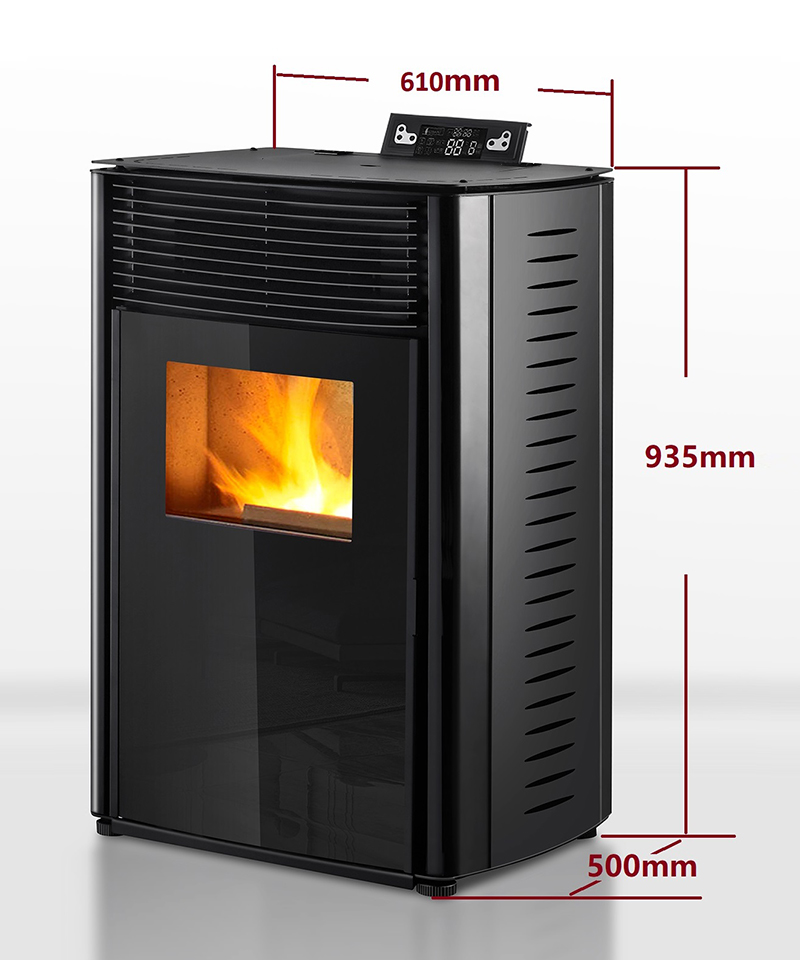

Dimension(W*H*D)610*935*500mm
Package Size(W*H*D)665*1065*555mm
Remote controlYes
Wi-FiYes

Description

CR-01-1热风炉

Pellet requirements
  • Certificate: ENplus-A1

  • Density: ≥600kg/m³

  • Size: Diameter 6-8mm

  • Length: 3.15≤L≤40

  • Ash content: ≤0.7% (max)

  • Moisture content: ≤10%

  • Heat value: ≥16.5MJ/kg

  • Fine material(<3.15mm): ≤1% (max)

Detailed

Installation matters:

1. The fireplace can be installed in the most active room to achieve the greatest thermal efficiency. If the indoor floor height is high, the use of fans can slowly spread the heat to the active area.

2. In order to match the fully automatic operation of the fireplace, install the electrical socket and wire connection box next to the installation location before completing the final installation.

3. If it is a duplex house, if the fireplace can be placed on the stair turning platform, the heat can be directly transmitted to the upper room or the lower room, so as to achieve the purpose of energy saving.

4. The floor where the fireplace is placed also needs to be insulated. Its requirements vary from product to product. Open wood burning fireplaces require a very wide base to hold sparks and ash. Setting up a glass oven door also considers the issue of adjusting the flame.

5. Choose a suitable base, you can ask your dealer to assist, using ceramic, marble and masonry products are all good choices. Different styles of stovetops are available in a range of colors and materials to suit your needs. Alcohol fireplace.

6. All fireplace design and construction require professional knowledge to ensure safe and efficient use.
